TONEFINDER V2.0

TONEFINDER
The Ultimate Pickup Analyzer
Everything you need to analyze a pickup. In one device.

Measure. Analyze. Compare. Understand.

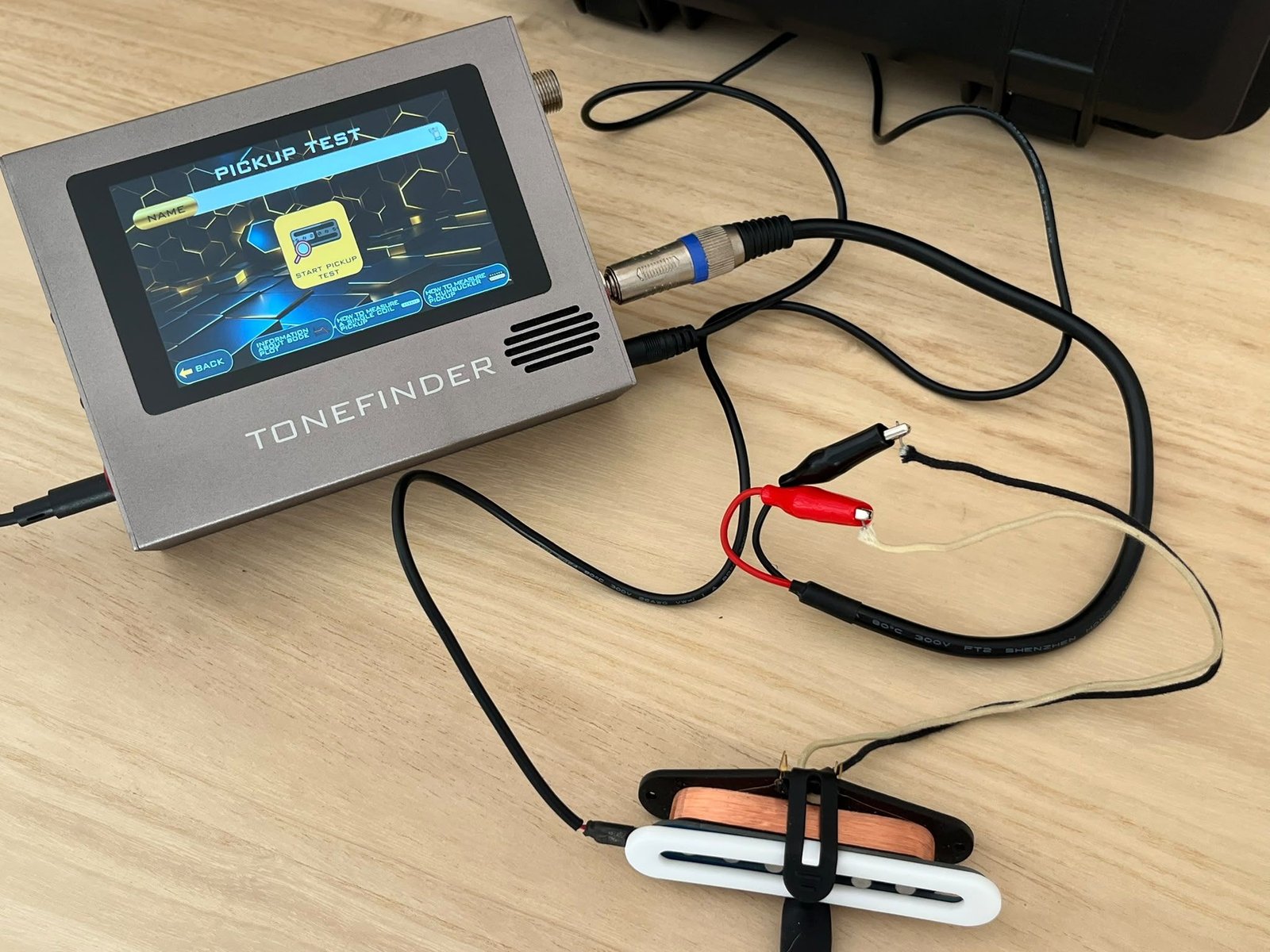

Tonefinder is a professional all-in-one guitar and bass pickup analyzer that combines electrical measurement, frequency-response analysis, magnetic measurement and data management in one compact, standalone device.

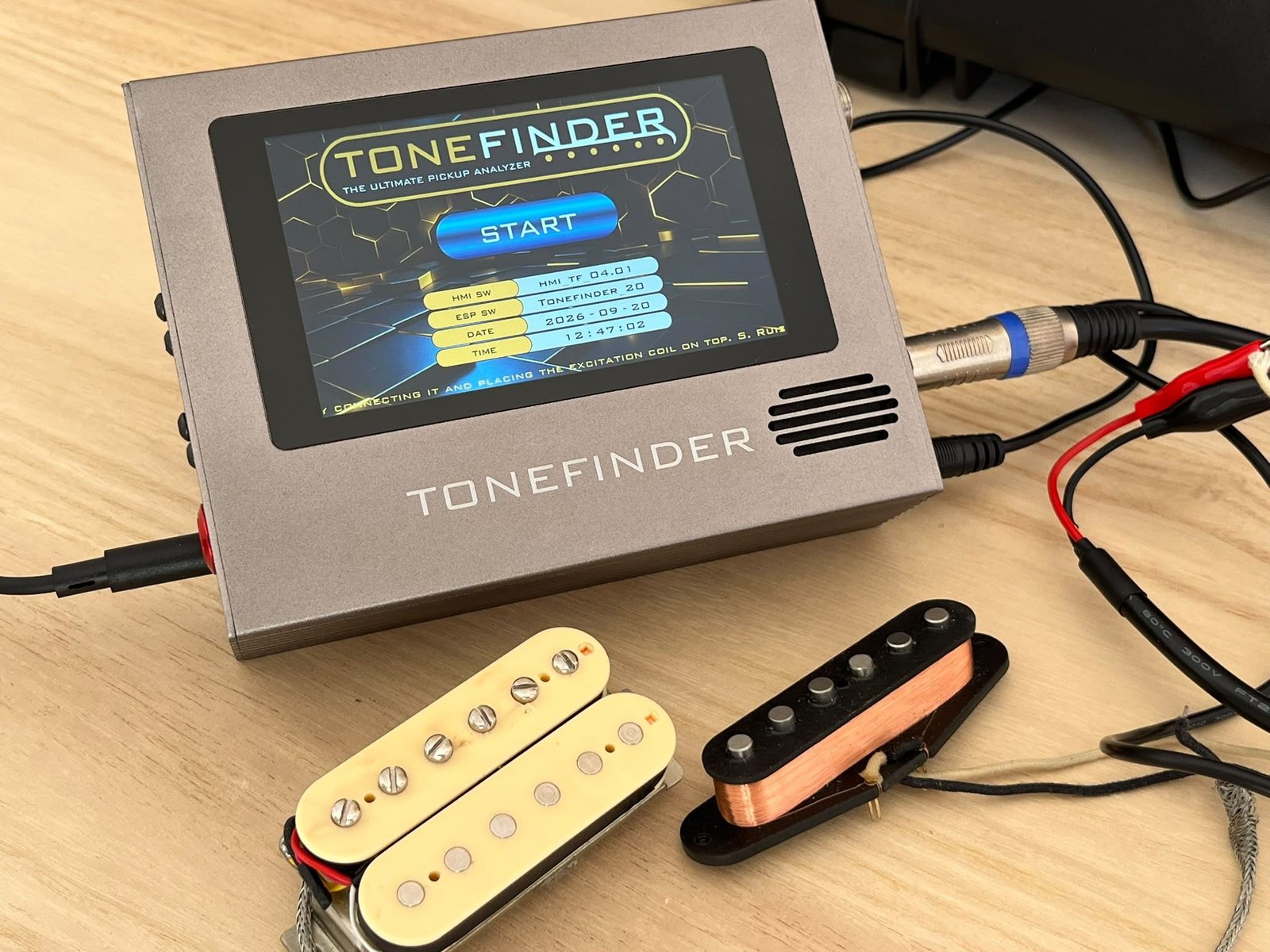

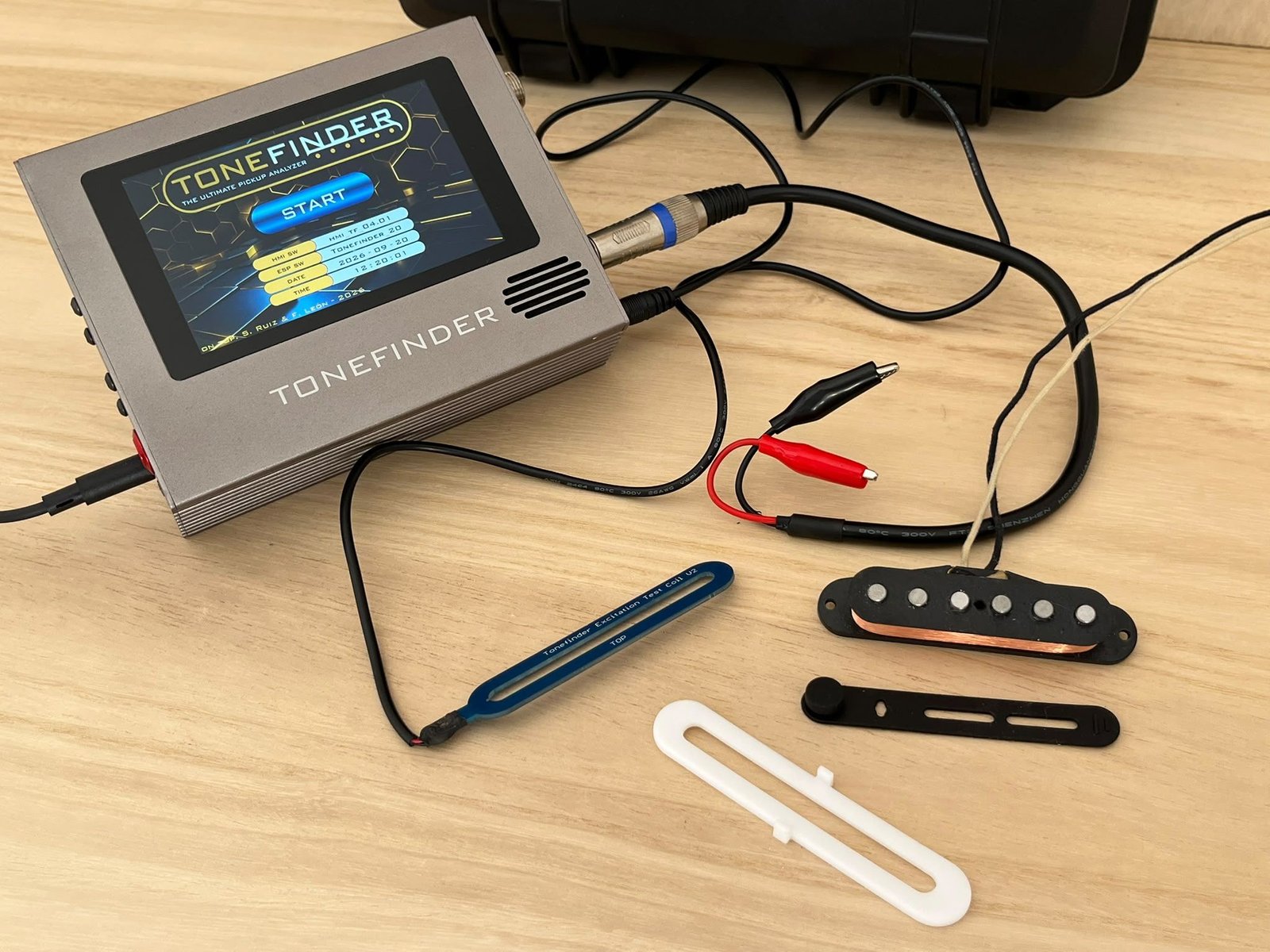

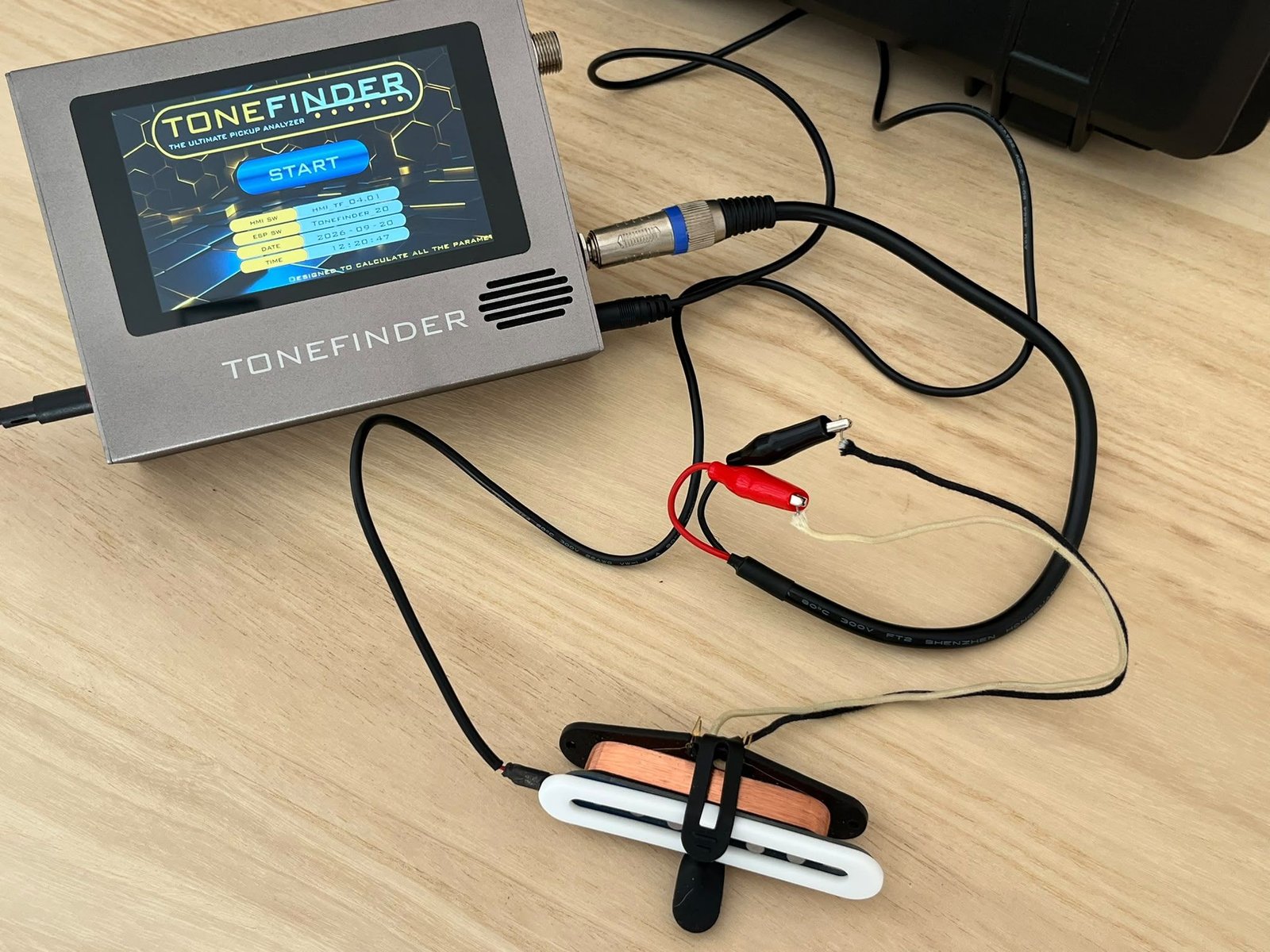

Simply connect your pickup and run the test.

Complete pickup characterization in less than one minute.

PRE-ORDER YOUR TONEFINDER FOR JUST €100

Special launch price: €690 until November 30
From December 1: €795

Reserve your unit today with a €100 deposit and pay the remaining €590 when your Tonefinder is ready for delivery.

First units expected in late October.

[ PRE-ORDER NOW — €100 ]

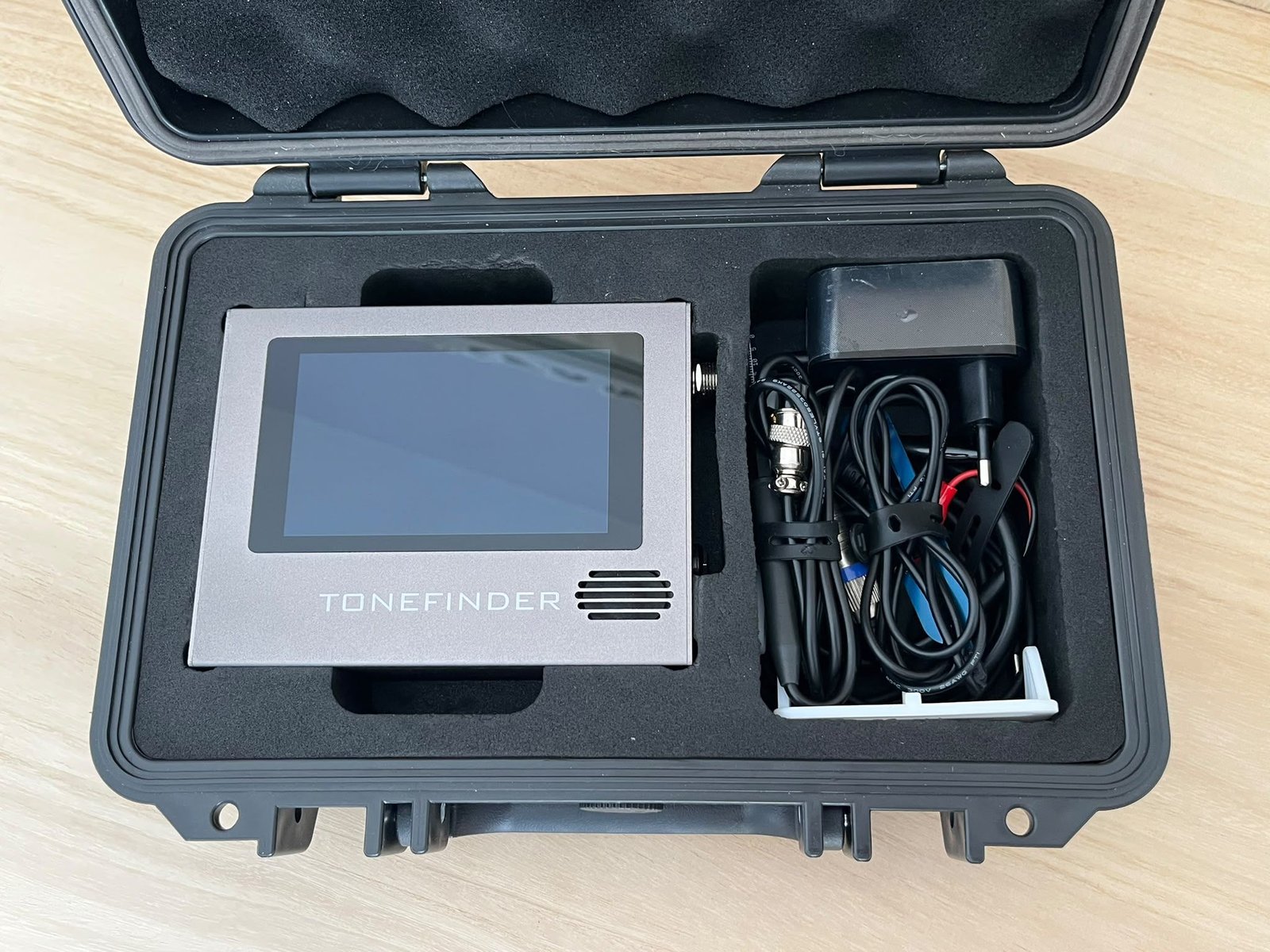

• A COMPLETE PICKUP LAB ON YOUR WORKBENCH

No oscilloscope, function generator, audio interface or analysis software required. No PC is needed for everyday measurements.

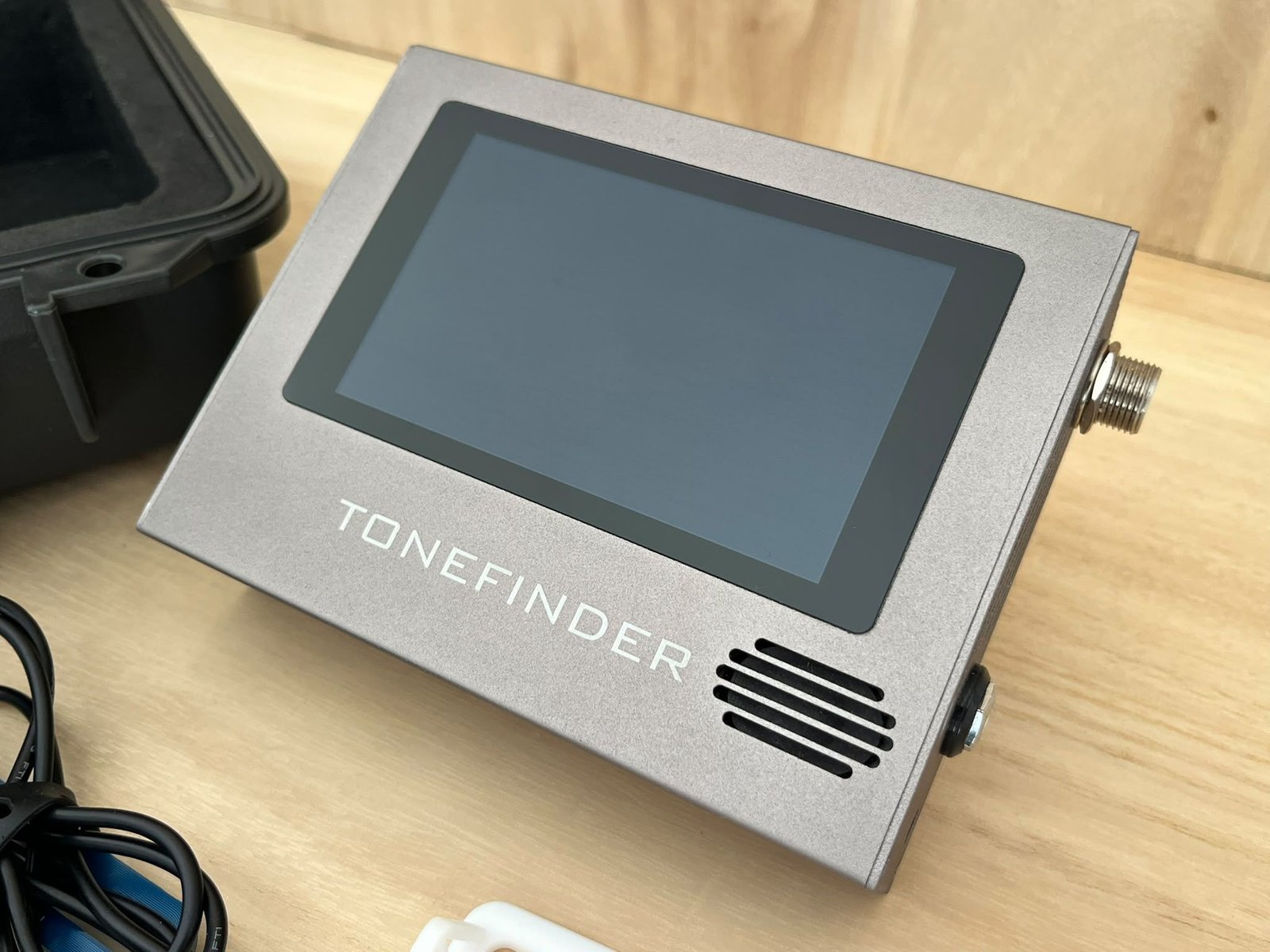

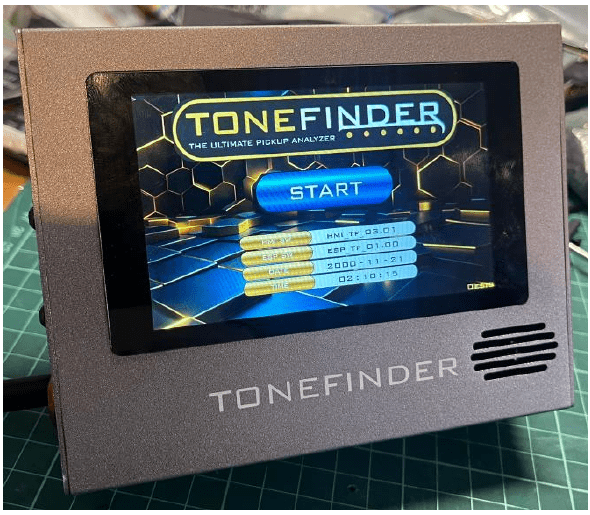

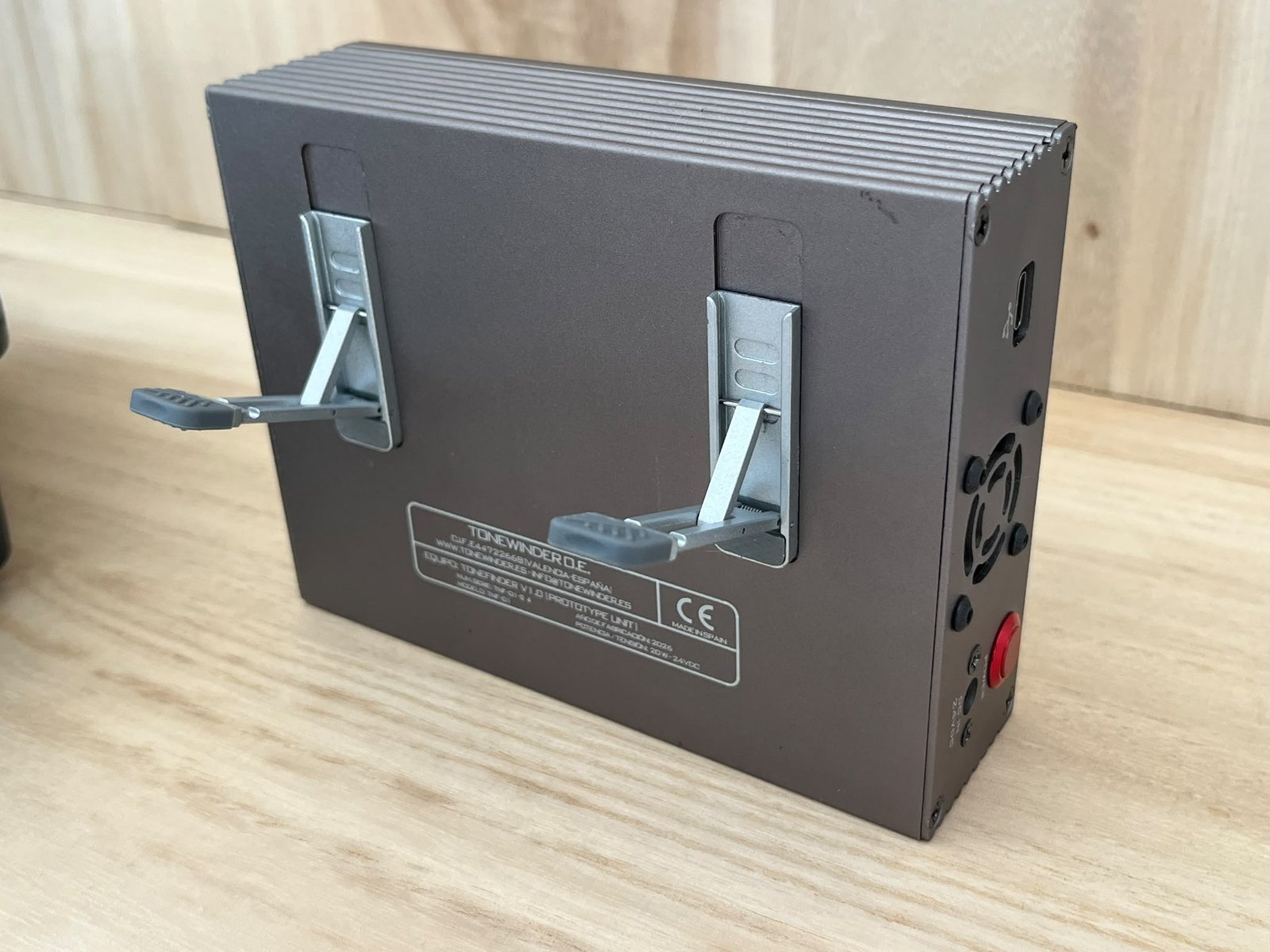

With its intuitive touchscreen interface and compact 140 × 110 × 40 mm format, Tonefinder is designed for pickup makers, luthiers, guitar builders and professionals — without requiring advanced electronics knowledge.

• MEASURE WHAT REALLY MATTERS

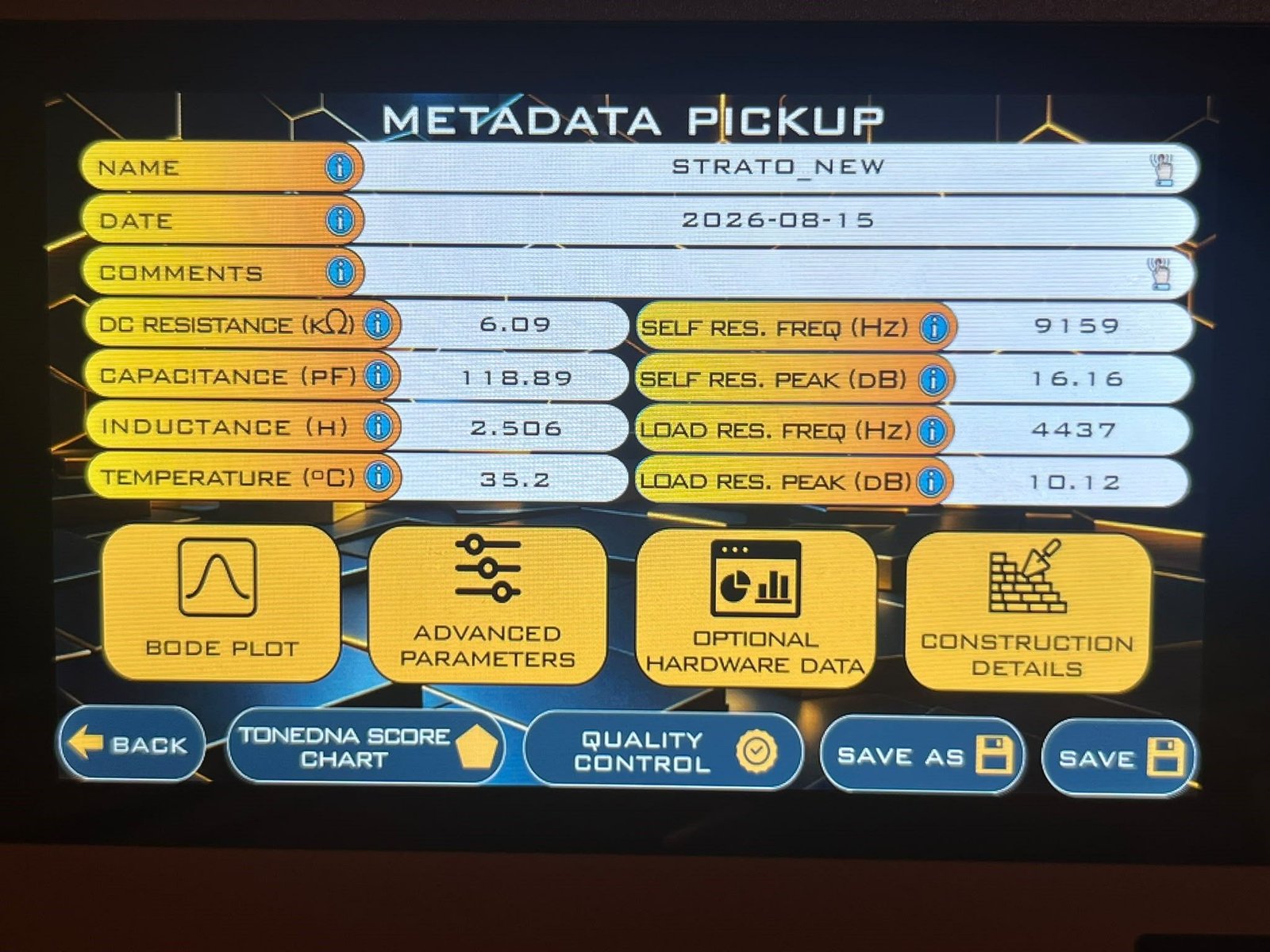

  R • L • C Electrical Analysis

Tonefinder measures and calculates the key parameters required to characterize a pickup:

DC Resistance • Parasitic Capacitance • Inductance • Resonant Frequency • Resonant Peak • Q Factor • Loaded Peak Loss

Results are displayed directly on screen and can be saved for future analysis.

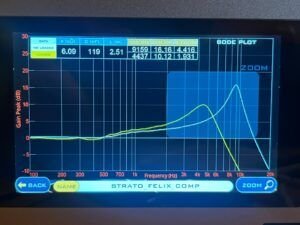

• SEE YOUR PICKUP’S FREQUENCY RESPONSE
  Loaded & Unloaded Analysis

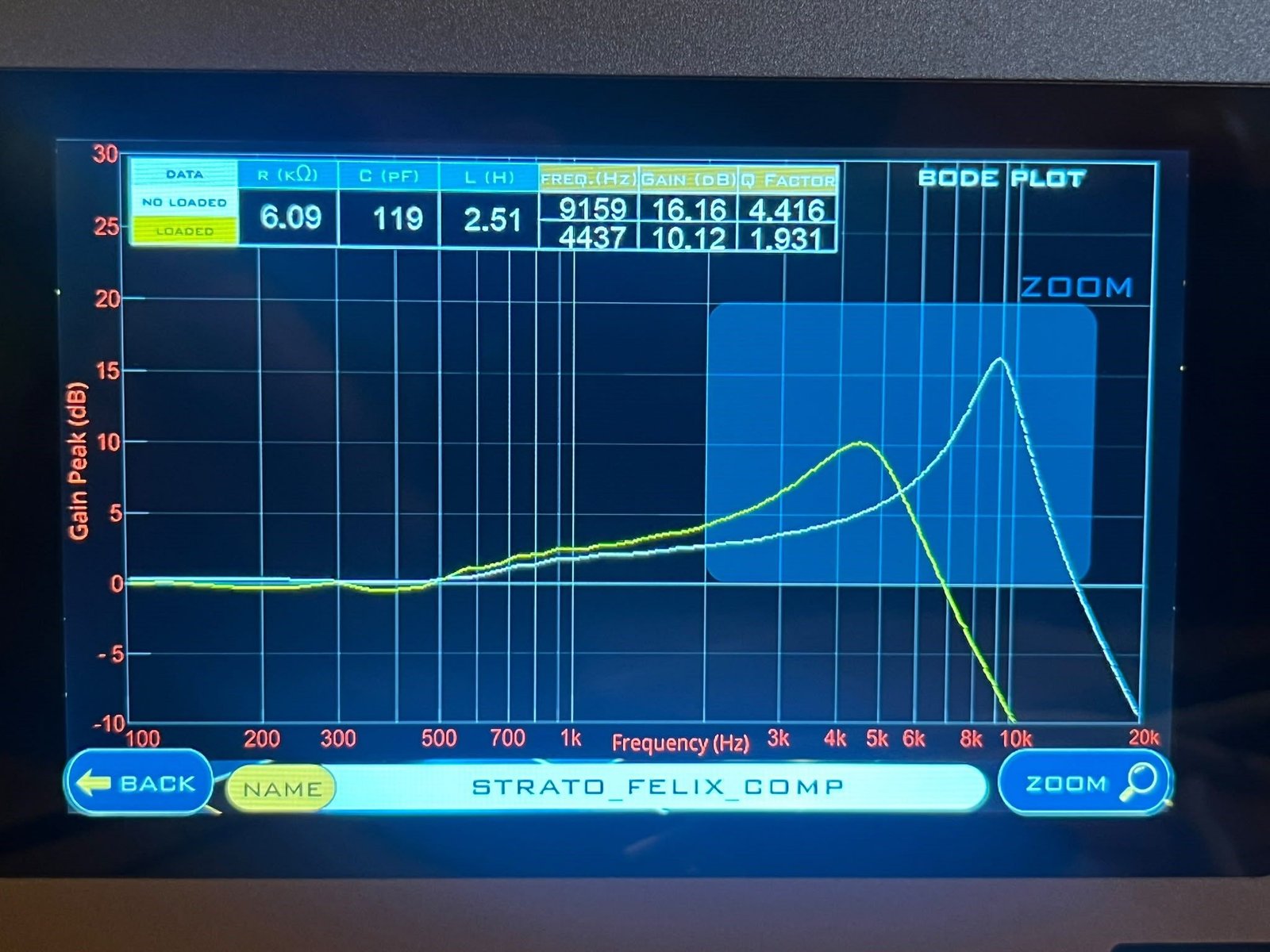

Tonefinder automatically performs a frequency sweep and generates the pickup’s Bode Plot.

Unloaded Response shows the pickup’s natural response, while Loaded Response shows how it behaves under an electrical load closer to real-world conditions.

Compare resonance frequency, peak and Q factor — all in less than one minute.

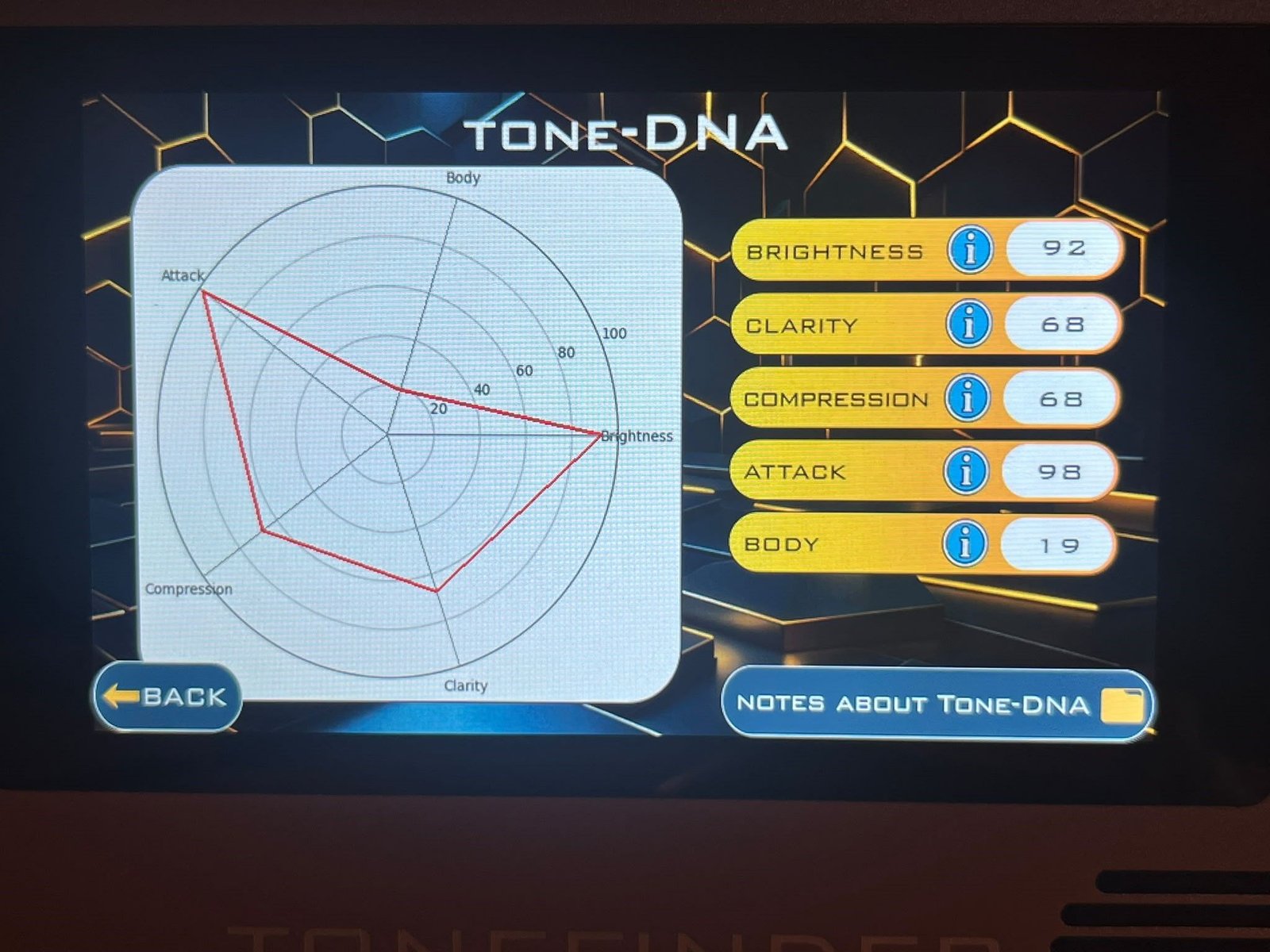

• TONE DNA
  Turn technical data into tonal information

ToneDNA translates measured data into an intuitive visual profile based on five tonal characteristics:

Brightness • Clarity • Compression • Attack • Body

A fast and visual way to understand and compare different pickups.

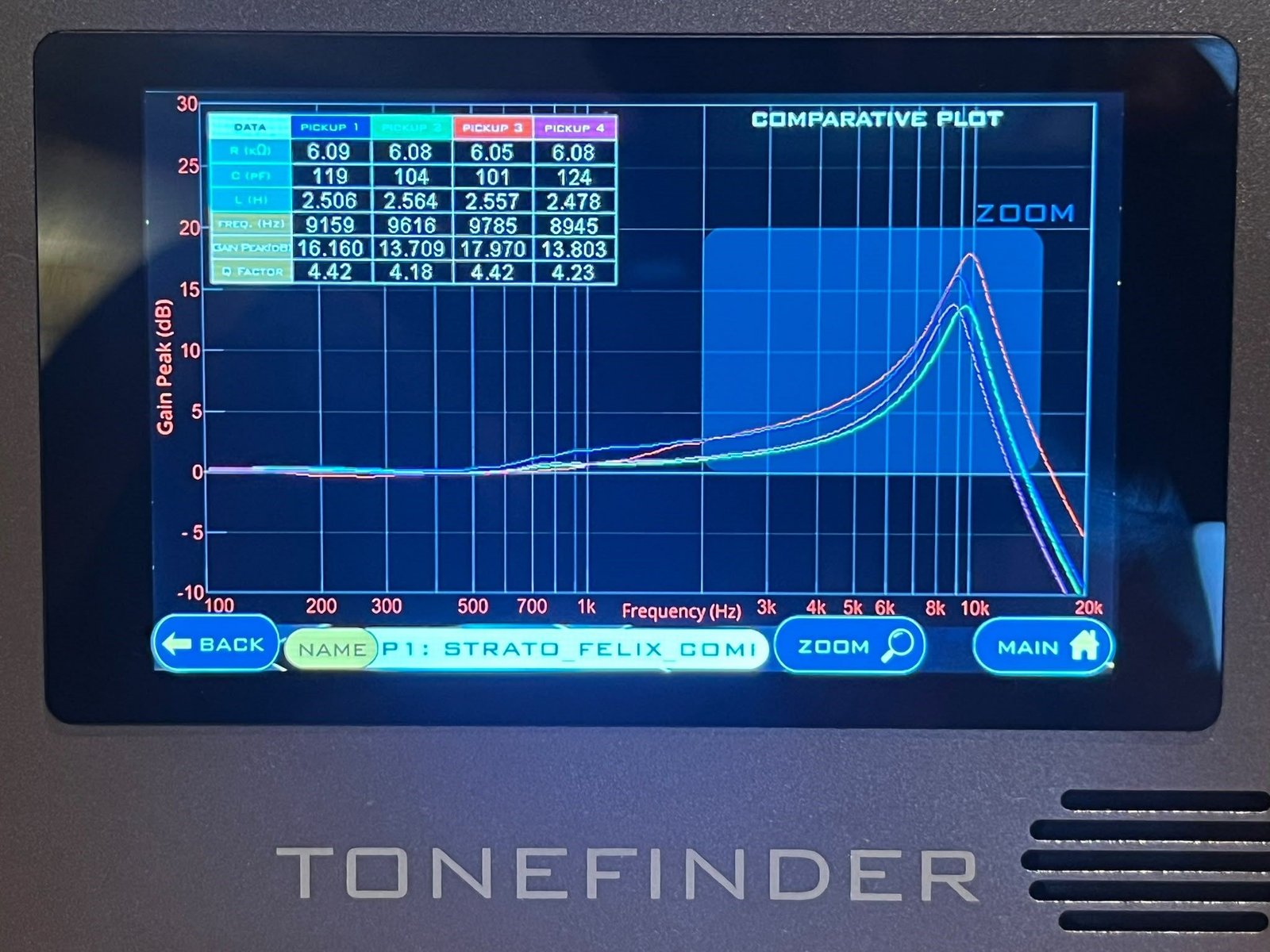

• COMPARE UP TO 4 PICKUPS

Load up to four measurements and overlay their curves for direct comparison.

Compare R, L, C, resonance, Q factor and frequency response, or compare your own measurements against pickups stored in the built-in reference library.

• MORE THAN A PICKUP ANALYZER

Built-in Gauss Meter — Measure magnetic field strength and polarity with the external probe.

Pickup Library — Access reference pickups and compare their curves directly with your measurements.

Pickup Calculator — Estimate winding turns and coil dimensions from bobbin geometry, wire and winding parameters.

Quality Control Test — Use a reference pickup to establish acceptable variation ranges and verify whether production units remain within specification.

• TEST PICKUPS INSIDE THE GUITAR

With Guitar Test, Tonefinder can analyze a pickup without removing it from the instrument.

Evaluate the effects of pickup selector positions, volume and tone controls, wiring, electronics and the actual guitar cable.

This lets you analyze not just the pickup itself, but how it performs in the real instrument.

• SAVE. RECALL. COMPARE.

Store up to 100 measurements internally and build your own pickup and guitar library.

Tonefinder works independently without a computer, while Wi-Fi connectivity allows you to transfer measurements to a PC for further analysis when required.

• BUILT FOR PICKUP & GUITAR PROFESSIONALS

Ideal for pickup makers and manufacturers, luthiers, guitar builders, repair shops, guitar professionals and enthusiasts.

Develop new pickups, compare designs, document modifications and introduce objective measurement and Quality Control into your workflow.

PRE-ORDER TONEFINDER
Reserve yours today for only €100
SPECIAL LAUNCH PRICE
€690

Available until November 30

Pay €100 now to reserve your Tonefinder and the remaining €590 when your unit is ready for delivery.

First units expected in late October.

From December 1: €795 list price.

[ PRE-ORDER NOW — €100 ]

TONEFINDER
Measure. Analyze. Compare. Understand.
